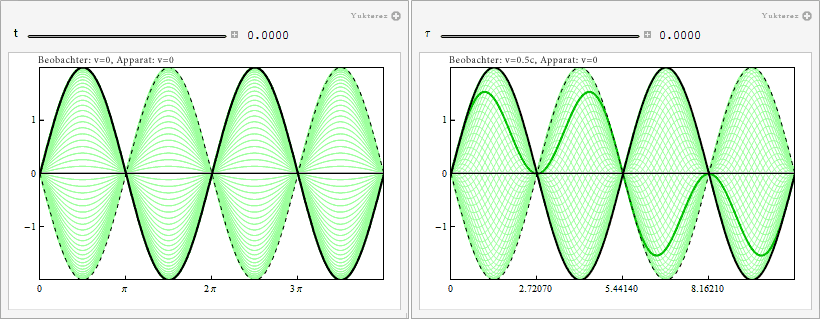

links: unbewegtes Inertialsystem mit Fokus auf die unbewegte Strecke
rechts: fahrendes Inertialsystem mit Fokus auf die unbewegte Strecke


          (* Mathematica Code für synchronisierten Loop *)
          (* Zeitleisten: t → 0 .. λ/c | τ → 0 .. λ/c γ *)

          v  = c/2;
          c  = 1;
          d1 = Sqrt[(c+v)/(c-v)];
          d2 = 1/d1;
          γ  = 1/Sqrt[1-v^2/c^2];
          Λ  = 2 π;

          Manipulate[{

          Show[

          Table[Plot[{

          Sin[x + c т] + Sin[x - c т],

          }, {x, 0, 4 π},
          PlotStyle->{LightGreen},
          Frame -> True,
          ImageSize -> 360,
          PlotRange -> {{0, 4 π}, {-2, 2}}],
          {т, 0, Λ, Λ/90}],

          Plot[{

          Sin[x + c t] + Sin[x - c t],

          2 Sin[x],
          2 Sin[x + π]

          }, {x, 0, 4 π},
          Frame -> True,
          PlotRange -> {{0, 4 π}, {-2, 2}},
          GridLines -> {{π, 2 π, 3 π}, {}},
          PlotStyle -> {{Green, Thick}, Dashed, Dashed},
          FrameTicks -> {{{-1, 0, 1}, None},
          {{0, π, 2 π, 3 π}, None}}]

          ],

          Show[

          Table[Plot[{

          Sin[d1 x + c т] + Sin[d2 x - c т],

          }, {x, 0, 4 π},
          PlotStyle->{LightGreen},
          Frame -> True,
          ImageSize -> 360,
          PlotRange -> {{0, 4 π/γ}, {-2, 2}}],
          {т, 0, Λ, Λ/60}],

          Plot[{

          Sin[d1 x + c t] + Sin[d2 x - c t],

          2 Sin[x γ],
          2 Sin[π + x γ]

          }, {x, 0, 4 π/γ},
          Frame -> True,
          PlotRange -> {{0, 4 π/γ}, {-2, 2}},
          GridLines -> {{π/γ, 2 π/γ, 3 π/γ}, {}},
          PlotStyle -> {{Green, Thick}, Dashed, Dashed},
          FrameTicks -> {{{-1, 0, 1}, None},
          {{0, N[π/γ, 6], N[2 π/γ, 6], N[3 π/γ, 6]}, None}}]

          ]},

          {t, 0, Λ/c}]

          (* Симон Тыран, Vienna 2015 | proper code: index *)
